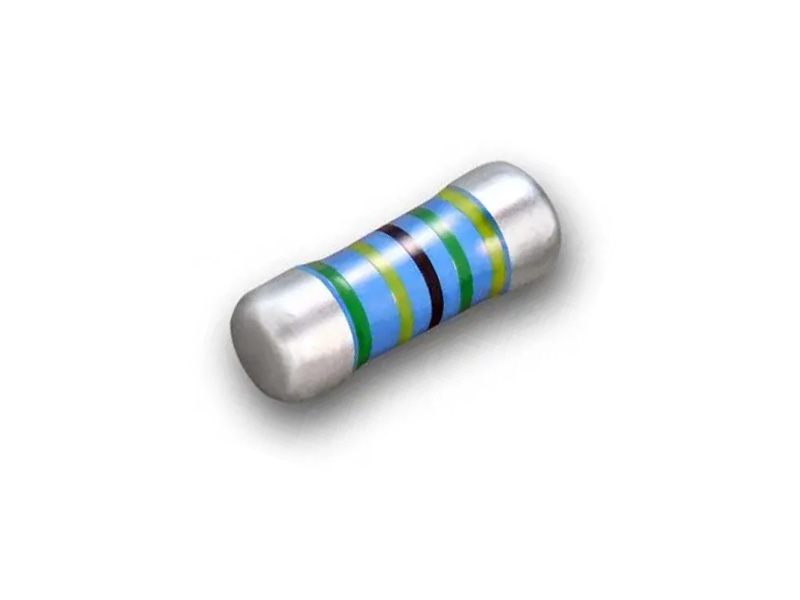

| Picture : |
|
| Authentication : | In Production RoHS REACH |
| Product Type： | MELF Metal Film Resistor |
| Series | CSR Series |
| Size： | 0207 |
| Resistance Value： | 3.9Ω(3.9R) |
| Resistance Tolerance： | ±5% |
| TCR(ppm)： | ±50PPM |
| Resistance Power： | 1/2W（0.5W) |
| Packing Type: | |
| MOQ: | 3000.0 |
| Minimum Package Quantity: | 3000.0 |
| Product Longevity Program: | 10 Years |
| Part Number | Category | Size | Resistance Value | Resistance Tolerance | TCR(ppm) | Resistance Power | Series | Operation |
|---|---|---|---|---|---|---|---|---|
| CSR0204FTCU1001 | MELF Metal Film Resistor | 0204 | 1KΩ(1KR) | ±1% | ±25PPM | 1/4W | CSR Series | |
| CSR0204FTCU1004 | MELF Metal Film Resistor | 0204 | 1MΩ(1MR) | ±1% | ±25PPM | 1/4W | CSR Series | |
| CSR0204FTCU2002 | MELF Metal Film Resistor | 0204 | 20KΩ(20KR) | ±1% | ±25PPM | 1/4W | CSR Series | |
| CSR0204DTDV2200 | MELF Metal Film Resistor | 0204 | 220Ω(220R) | ±0.5% | ±50PPM | 1/4W | CSR Series | |
| CSR0204FTCU2493 | MELF Metal Film Resistor | 0204 | 249KΩ(249KR) | ±1% | ±25PPM | 1/4W | CSR Series | |
| CSR0204FTCU7501 | MELF Metal Film Resistor | 0204 | 7.5KΩ(7.5KR) | ±1% | ±25PPM | 1/4W | CSR Series | |
| CSR0204FTCU1501 | MELF Metal Film Resistor | 0204 | 1.5KΩ(1.5KR) | ±1% | ±25PPM | 1/4W | CSR Series | |
| CSR0204FTCU1203 | MELF Metal Film Resistor | 0204 | 120KΩ(120KR) | ±1% | ±25PPM | 1/4W | CSR Series | |
| CSR0207JTDU3R90 | MELF Metal Film Resistor | 0207 | 3.9Ω(3.9R) | ±5% | ±50PPM | 1/2W（0.5W) | CSR Series |
