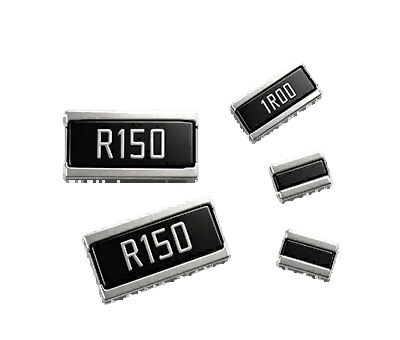

The ECW series resistors are mainly used to control current, reduce voltage, distribute electromotive force, etc., convert alternating current or direct current into voltage and current suitable for the device, and are used to control the size of current and protect the circuit.
| Part Number | Category | Size | Resistance Value | Resistance Tolerance | TCR(ppm) | Resistance Power | Series | Operation |
|---|---|---|---|---|---|---|---|---|
| ECW62JA22R0EEH | Wide Terminal Thick Film Chip Resistor | 0612 | 22Ω(22R) | ±5% | ±100PPM | 1.5W | ECW Series | |
| ECW62JA47R0EEH | Wide Terminal Thick Film Chip Resistor | 0612 | 47Ω(47R) | ±5% | ±100PPM | 1.5W | ECW Series | |
| ECW62JA51R0EEH | Wide Terminal Thick Film Chip Resistor | 0612 | 51Ω(51R) | ±5% | ±100PPM | 1.5W | ECW Series | |
| ECW62JA200REEH | Wide Terminal Thick Film Chip Resistor | 0612 | 200Ω(200R) | ±5% | ±100PPM | 1.5W | ECW Series | |
| ECW62JA390REEH | Wide Terminal Thick Film Chip Resistor | 0612 | 390Ω(390R) | ±5% | ±100PPM | 1.5W | ECW Series | |
| ECW62FQR200JEL | Wide Terminal Thick Film Chip Resistor | 0612 | 0.2Ω(200mR) | ±1% | ±600PPM | 3/4W(0.75W) | ECW Series |
