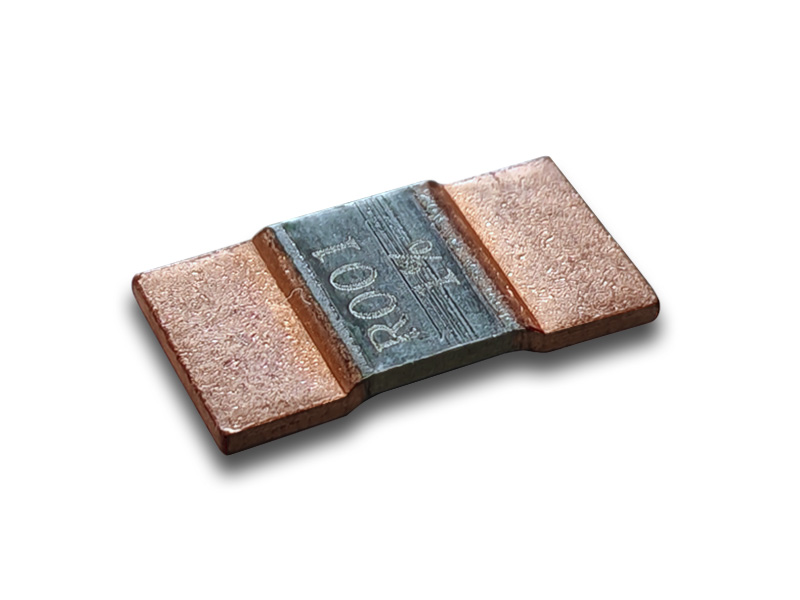

ESR series, low resistance shunt resistor, mainly used in current sampling circuit, ultra-low resistance, high power and good heat dissipation performance, application of new energy power battery, outdoor energy storage and industrial fields.
| Part Number | Category | Size | Resistance Value | Resistance Tolerance | TCR(ppm) | Resistance Power | Series | Operating Temperature Range (℃) | Operation |
|---|---|---|---|---|---|---|---|---|---|
| ESR59F9WR001K02G | Metal shunt chip resistor | 5930 | 0.001Ω(1mR) | ±1% | ±75PPM | 9W | ESR Series | -55℃~+170℃ | |
| ESR25F6WR001M04G | Metal shunt chip resistor | 2512 | 0.001Ω(1mR) | ±1% | ±100PPM | 6W | ESR Series | -55℃~+170℃ | |
| ESR25F6WR002K04G | Metal shunt chip resistor | 2512 | 0.002Ω(2mR) | ±1% | ±50PPM | 6W | ESR Series | -55℃~+170℃ | |
| ESR39F8WR001F02G | Metal shunt chip resistor | 3920 | 0.001Ω(1mR) | ±1% | ±50PPM | 8W | ESR Series | -55℃~+170℃ | |
| ESR25F3WR001M04G | Metal shunt chip resistor | 2512 | 0.001Ω(1mR) | ±1% | ±100PPM | 3W | ESR Series | -55℃~+170℃ | |
| ESR25F3WR003K04G | Metal shunt chip resistor | 2512 | 0.003Ω(3mR) | ±1% | ±50PPM | 3W | ESR Series | -55℃~+170℃ | |
| ESR25F2W5R005K04G | Metal shunt chip resistor | 2512 | 0.005Ω(5mR) | ±1% | ±50PPM | 2.5W(2W5) | ESR Series | -55℃~+170℃ | |
| ESR25F2W5R005K04G | Metal shunt chip resistor | 2512 | 0.005Ω(5mR) | ±1% | ±50PPM | 2.5W(2W5) | ESR Series | -55℃~+170℃ | |
| ESR39F6WR002K02G | Metal shunt chip resistor | 3920 | 0.002Ω(2mR) | ±1% | ±75PPM | 6W | ESR Series | -55℃~+170℃ | |
| ESR39F5WR003F02G | Metal shunt chip resistor | 3920 | 0.003Ω(3mR) | ±1% | ±50PPM | 5W | ESR Series | -55℃~+170℃ |
