Ellon provides a variety of types of resistors, such as alloy resistors, wide electrode current detection resistors, metal shunt resistors, high precision film patch resistors, high power thick film patch resistors and many other types.

Product Family
FAQ
Contact Us

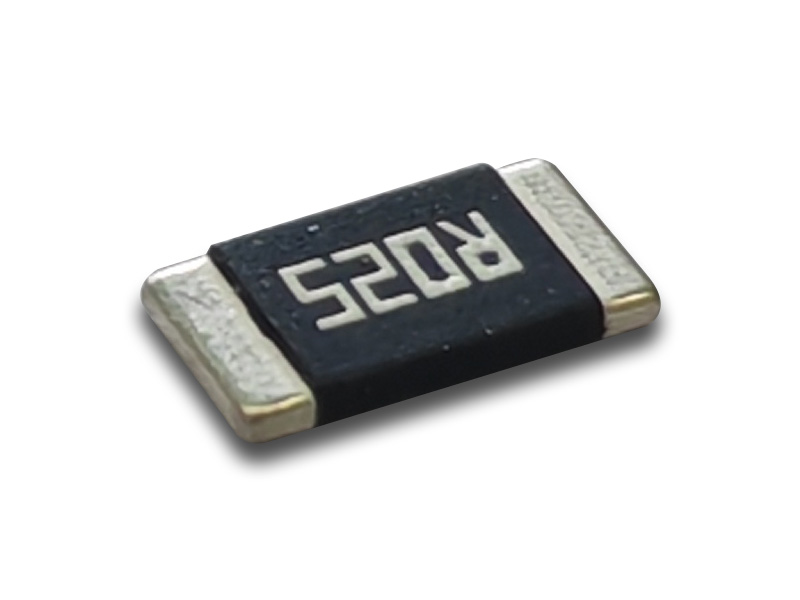

Metal Current Sensing Chip Resistor

EMA Series

EMA Series

  • Surface mount 0805/1206/2512/2725/2728/2817/4527 case sizes
  • Resistance values up to 500mΩ
  • High precision current sensing and voltage division
  • Resistance tolerance (±0.1%)
  • Reflow compatible
  • Low resistance / Low TCR

Metal shunt chip resistor

ESR Series

ESR Series

  • Stand Package Size 2512 3920 5930
  • Resistance Value: 0.1mΩ~5mΩ
  • Value accuracy: ±0.5%(D), ±1%(F), ±5%(J)
  • Resistance temperature coefficient : MIN 20PPM/℃
  • Working temperature range: -55℃+175℃
  • Inductors:<2Nh
  • EMV(0-100℃):<1µV/℃
  • Power(P70℃):MAX15W
  • AEC-Q200 Reliability Testing Passed
  • Low Resistance/TCR
ESRH Series

ESRH Series

  • Standard Package Size 2512 3921 5931
  • Resistance Value: 0.1mΩ~5mΩ
  • Value accuracy: ±0.5%(D), ±1%(F), ±5%(J)
  • Resistance temperature coefficient : MIN 20PPM/℃
  • Working temperature range: -55℃+175℃
  • Inductors:<2Nh
  • EMV(0-100℃):<1µV/℃
  • Power(P70℃):MAX15W
  • AEC-Q200 Reliability Testing Passed
  • Rohs Compliant

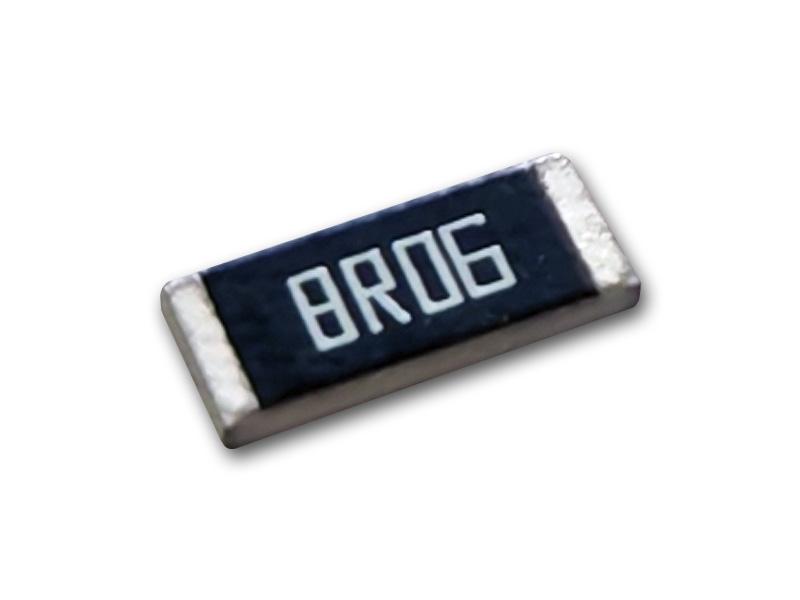

Thin Film Precision Chip Resistor

ETR Series

ETR Series

  • Advanced thin film technology
  • Very tight tolerance down to ±0.01%
  • Extremely Low TCR down to ±1PPM
  • precise tolerance and temperature coefficient
  • Miniature size 0201 available
  • Low noise, thin film (nicr) construction
  • Teflow solderable

Wide Terminal Thick Film Chip Resistor

ECW Series

ECW Series

  • Wide Terminal
  • High precision current sensing
  • High power capability
  • Halogen free and lead free
  • RoHS compliant

High Power Thick Film Chip Resistor

EHP Series

EHP Series

  • Thick film on alumina substrate, RuO2/Ag Resistive layer
  • High Power capability
  • Low Resistance/TCR/inductance
  • High precision current sensing
  • Halogen free and lead free
  • Glass and epoxy overcoat

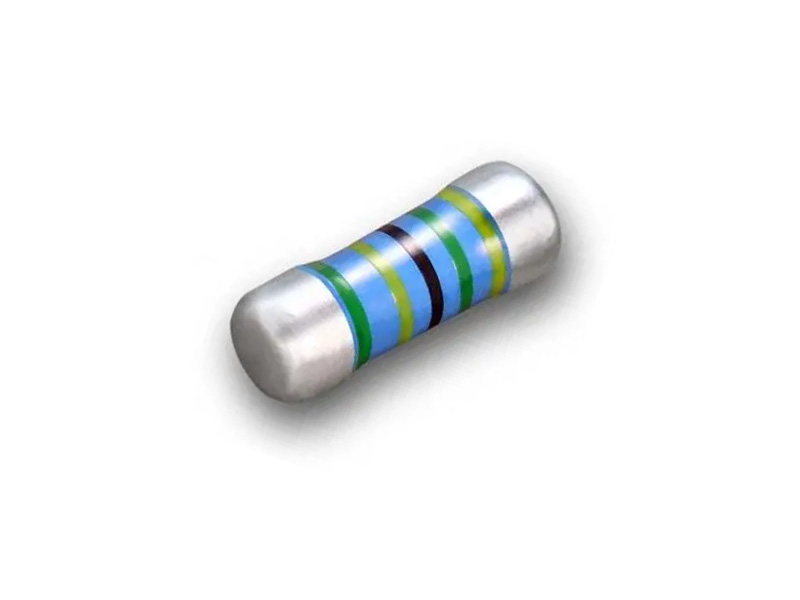

MELF Metal Film Resistor

CSR Series

CSR Series

  • Excellent overall stability
  • Tight tolerance down to ±0.1%
  • Extremely low TCR down to ±10 PPM/°C
  • High power rating up to 1 Watts

Metal Film Chip Resistor

ELR Series

ELR Series

  • Low Resistance/TCR/inductance
  • Excellent long-term stability
  • High precision current sensing
  • High power capability
  • Halogen free and lead free
  • RoHS compliant
EWLR Series

EWLR Series

  • Low Resistance/TCR/inductance(≤5nH)
  • Excellent long-term stability
  • High precision current sensing
  • High power capability
  • Halogen free and lead free
  • RoHS compliant

Anti-Surge Metal Film Chip Resistor

EGM series

EGM series

  • Anti-Surge Voltage
  • Standard package sizes(1206 1210 2010 2512)
  • High Power capability
  • Low Resistance/TCR/inductance
  • High Precision current sensing
  • Halogen free and lead free
  • Rohs Compliant

Anti-Sulfur Metal Film Chip Resistor

EAM Series

EAM Series

  • Standard Package Sizes (0402 0603 0805 1206 1210 2010 2512)
  • High Power capability
  • Low Resistance/TCR/inductance
  • High precision current sensing
  • Superior Resistance against sulfur containing atmosphere
  • RoHs Compliant

Product Application

  • Light dimming, prevent overload
  • Partial voltage and current detection in electronic circuits
  • Power control, analog signal processing
  • Photoelectric conversion and temperature control
  • Advanced audio, computer, testing equipment
  • Automatic control equipment

Product Model

Parameter Selection :
Part Number Category Size Resistance Value Resistance Tolerance TCR(ppm) Resistance Power Series Operating Temperature Range (℃) Operation
EMA25F3W0R200KDG Metal Current Sensing Chip Resistor 2512 0.2Ω(200mR) ±1% ±50PPM 3W EMA Series
ESRH25F5WR003K04G Metal shunt chip resistor 2512 0.003Ω(3mR) ±1% ±25PPM 5W ESRH Series -55℃~+170℃
ESRH25F5WR004K04G Metal shunt chip resistor 2512 0.004Ω(4mR) ±1% ±25PPM 5W ESRH Series -55℃~+170℃
ESRH25F5WR005K04G Metal shunt chip resistor 2512 0.005Ω(5mR) ±1% ±25PPM 5W ESRH Series -55℃~+170℃
EMA25F3W0R120MDG Metal Current Sensing Chip Resistor 2512 0.12Ω(120mR) ±1% ±50PPM 3W EMA Series
ESRH25F7W1M50K04G Metal shunt chip resistor 2512 0.0015Ω(1.5mR) ±1% ±25PPM 7W ESRH Series -55℃~+170℃
ETR04DY100RCCP Thin Film Precision Chip Resistor 0402 100Ω ±0.5% ±25PPM 1/16W ETR Series
ETR04BY33R0CCP Thin Film Precision Chip Resistor 0402 33Ω(33R) ±0.1% ±25PPM 1/16W ETR Series
ETR04DY294RCCP Thin Film Precision Chip Resistor 0402 294Ω(294R) ±0.5% ±25PPM 1/16W ETR Series
ESR59F9WR001K02G Metal shunt chip resistor 5930 0.001Ω(1mR) ±1% ±75PPM 9W ESR Series -55℃~+170℃
