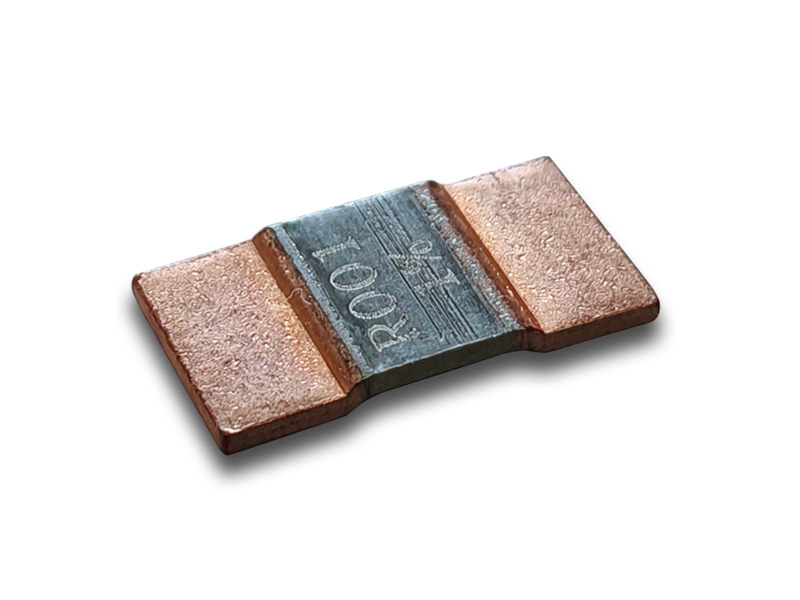

Metal shunt resistor, high power and low resistance characteristics, suitable for stable use in high temperature environment, the use of MnCu alloy materials, such as 1206 high power alloy resistor, resistance range in 0.001R(1mΩ) to 0.025R(25mΩ), high temperature, high humidity and harsh working conditions to maintain stable performance.
| Part Number | Category | Size | Resistance Value | Resistance Tolerance | TCR(ppm) | Resistance Power | Series | Operating Temperature Range (℃) | Operation |
|---|---|---|---|---|---|---|---|---|---|
| ESRH25F5WR003K04G | Metal shunt chip resistor | 2512 | 0.003Ω(3mR) | ±1% | ±25PPM | 5W | ESRH Series | -55℃~+170℃ | |
| ESRH25F5WR004K04G | Metal shunt chip resistor | 2512 | 0.004Ω(4mR) | ±1% | ±25PPM | 5W | ESRH Series | -55℃~+170℃ | |
| ESRH25F5WR005K04G | Metal shunt chip resistor | 2512 | 0.005Ω(5mR) | ±1% | ±25PPM | 5W | ESRH Series | -55℃~+170℃ | |
| ESRH25F7W1M50K04G | Metal shunt chip resistor | 2512 | 0.0015Ω(1.5mR) | ±1% | ±25PPM | 7W | ESRH Series | -55℃~+170℃ | |
| ESR59F9WR001K02G | Metal shunt chip resistor | 5930 | 0.001Ω(1mR) | ±1% | ±75PPM | 9W | ESR Series | -55℃~+170℃ | |
| ESRH25F7WR001K04G | Metal shunt chip resistor | 2512 | 0.001Ω(1mR) | ±1% | ±25PPM | 7W | ESRH Series | -55℃~+170℃ | |
| ESR25F6WR001M04G | Metal shunt chip resistor | 2512 | 0.001Ω(1mR) | ±1% | ±100PPM | 6W | ESR Series | -55℃~+170℃ | |
| ESR25F6WR002K04G | Metal shunt chip resistor | 2512 | 0.002Ω(2mR) | ±1% | ±50PPM | 6W | ESR Series | -55℃~+170℃ | |
| ESR39F8WR001F02G | Metal shunt chip resistor | 3920 | 0.001Ω(1mR) | ±1% | ±50PPM | 8W | ESR Series | -55℃~+170℃ | |
| ESR25F3WR001M04G | Metal shunt chip resistor | 2512 | 0.001Ω(1mR) | ±1% | ±100PPM | 3W | ESR Series | -55℃~+170℃ |
