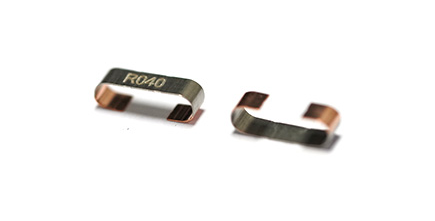

| Picture : |
|
| Authentication : | In Production RoHS REACH |
| Product Type： | Low-Resistance Shunt Resistor |
| Series | ESRC Series |
| Size： | 11*6.2*3.3mm |
| Resistance Value： | 0.002Ω(2mR) |
| Resistance Tolerance： | ±1% |
| TCR(ppm)： | ±100PPM |
| Resistance Power： | 10W |
| Packing Type: | |
| MOQ: | 1000.0 |
| Minimum Package Quantity: | 1000.0 |
| Product Longevity Program: | 10 Years |
| Part Number | Category | Size | Resistance Value | Resistance Tolerance | TCR(ppm) | Resistance Power | Series | Operation |
|---|---|---|---|---|---|---|---|---|
| ESRC41F4W0R010K02G | Metal shunt chip resistor | 11*3.15*3.3mm | 0.01Ω(10mR) | ±1% | ±50PPM | 4W | ESRC Series | |
| ESRC42F10WR002M01G | Metal shunt chip resistor | 11*6.2*3.3mm | 0.002Ω(2mR) | ±1% | ±100PPM | 10W | ESRC Series | |
| ESRC42F12WR001M01G | Metal shunt chip resistor | 11*6.2*3.3mm | 0.001Ω(1mR) | ±1% | ±100PPM | 12W | ESRC Series | |
| ESRC42F7W0R010M01G | Metal shunt chip resistor | 11*6.2*3.3mm | 0.01Ω(10mR) | ±1% | ±50PPM | 7W | ESRC Series | |
| ESRC429W0R005K01G | Metal shunt chip resistor | 11*6.2*3.3mm | 0.005Ω(5mR) | ±1% | ±50PPM | 9W | ESRC Series |
