Resistors

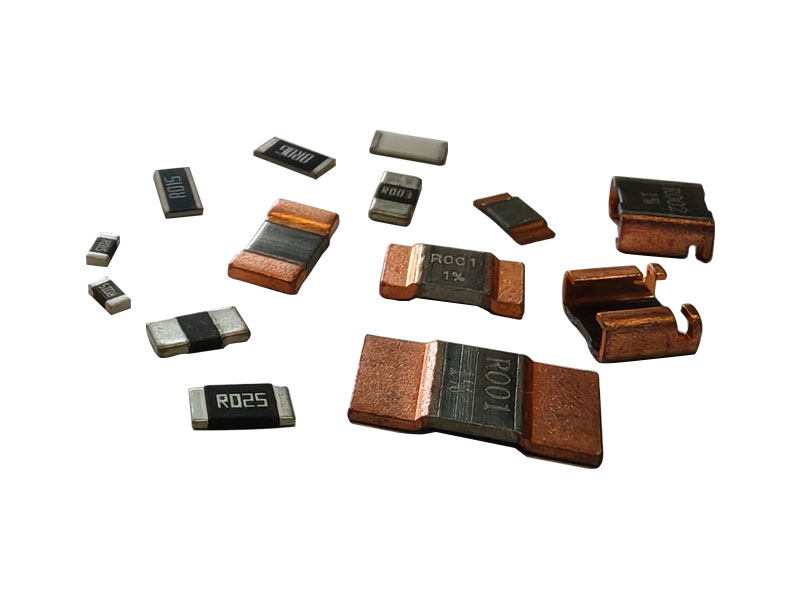

Ellon provides a variety of types of resistors, such as alloy resistors, wide electrode current detection resistors, metal shunt resistors, high precision film patch resistors, high power thick film patch resistors and many other types.

Product Lineup

Metal Current Sensing Chip Resistor

EMA Series

Surface mount 0805/1206/2512/2725/2728/2817/4527 case sizes
Resistance values up to 500mΩ
High precision current sensing and voltage division
Resistance tolerance (±0.1%)
Reflow compatible
Low resistance / Low TCR

Metal shunt chip resistor

ESR Series

Stand Package Size 2512 3920 5930
Resistance Value: 0.1mΩ~5mΩ
Value accuracy: ±0.5%(D), ±1%(F), ±5%(J)
Resistance temperature coefficient : MIN 20PPM/℃
Working temperature range: -55℃+175℃
Inductors:<2Nh
EMV(0-100℃):<1µV/℃
Power(P70℃):MAX15W
AEC-Q200 Reliability Testing Passed
Low Resistance/TCR

ESRH Series

Standard Package Size 2512 3921 5931
Resistance Value: 0.1mΩ~5mΩ
Value accuracy: ±0.5%(D), ±1%(F), ±5%(J)
Resistance temperature coefficient : MIN 20PPM/℃
Working temperature range: -55℃+175℃
Inductors:<2Nh
EMV(0-100℃):<1µV/℃
Power(P70℃):MAX15W
AEC-Q200 Reliability Testing Passed
Rohs Compliant

Thin Film Precision Chip Resistor

ETR Series

Advanced thin film technology
Very tight tolerance down to ±0.01%
Extremely Low TCR down to ±1PPM
precise tolerance and temperature coefficient
Miniature size 0201 available
Low noise, thin film (nicr) construction
Teflow solderable

Wide Terminal Thick Film Chip Resistor

ECW Series

Wide Terminal
High precision current sensing
High power capability
Halogen free and lead free
RoHS compliant

High Power Thick Film Chip Resistor

EHP Series

Thick film on alumina substrate, RuO2/Ag Resistive layer
High Power capability
Low Resistance/TCR/inductance
High precision current sensing
Halogen free and lead free
Glass and epoxy overcoat

MELF Metal Film Resistor

CSR Series

Excellent overall stability
Tight tolerance down to ±0.1%
Extremely low TCR down to ±10 PPM/°C
High power rating up to 1 Watts

Metal Film Chip Resistor

ELR Series

Low Resistance/TCR/inductance
Excellent long-term stability
High precision current sensing
High power capability
Halogen free and lead free
RoHS compliant

EWLR Series

Low Resistance/TCR/inductance(≤5nH)
Excellent long-term stability
High precision current sensing
High power capability
Halogen free and lead free
RoHS compliant

Anti-Surge Metal Film Chip Resistor

EGM series

Anti-Surge Voltage
Standard package sizes(1206 1210 2010 2512)
High Power capability
Low Resistance/TCR/inductance
High Precision current sensing
Halogen free and lead free
Rohs Compliant

Anti-Sulfur Metal Film Chip Resistor

EAM Series

Standard Package Sizes (0402 0603 0805 1206 1210 2010 2512)
High Power capability
Low Resistance/TCR/inductance
High precision current sensing
Superior Resistance against sulfur containing atmosphere
RoHs Compliant

Inductors

ELLON inductors include winding patch inductors and integrated forming power inductors, etc. The main products are high precision film surface mounting, current sensing surface mounting, high frequency surface mounting components and high current, high power integrated forming inductors.

Product Lineup

Molded Power Inductors

ETC Series

Magnetically shielded construction,Low DC resistance
The use of magnetic iron power ensure capability for large current
Low audible core noise
ldeal for DC-DC converter applications in land held personal computer and etc.
Frequency Range: up to 30MHZ
ROHS compliant

Power Inductors

ESRN Series

Magnetically shielded construction, low DC resistance
The use of magnetic iron power ensure capability for large current
Low audible core noise
Ideal for DC-DC converter applications in land held personal computer and etc.
Frequency Range: up to 30MHZ
ROHS compliant
